Sistema radiomicrofono Headset EIKON BY PROEL - J&H

EKJ&H è un sistema microfonico wireless ad archetto UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.

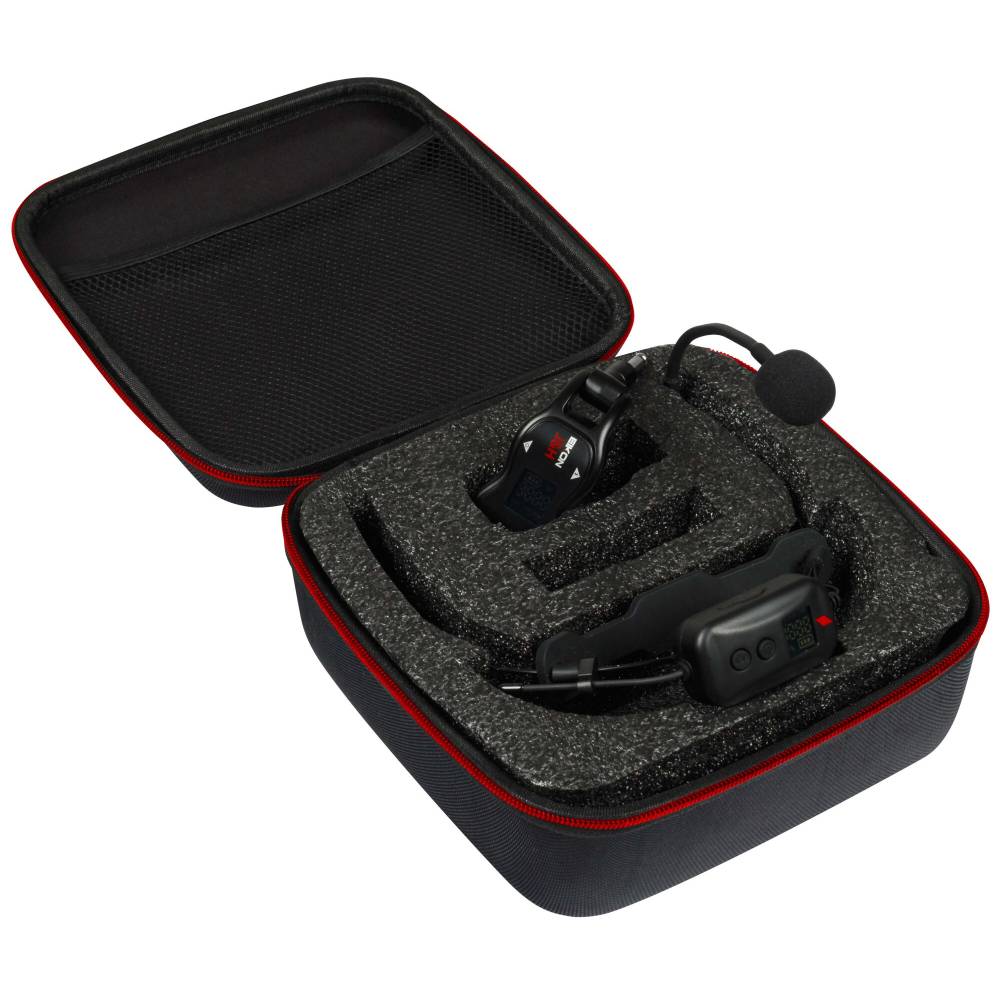

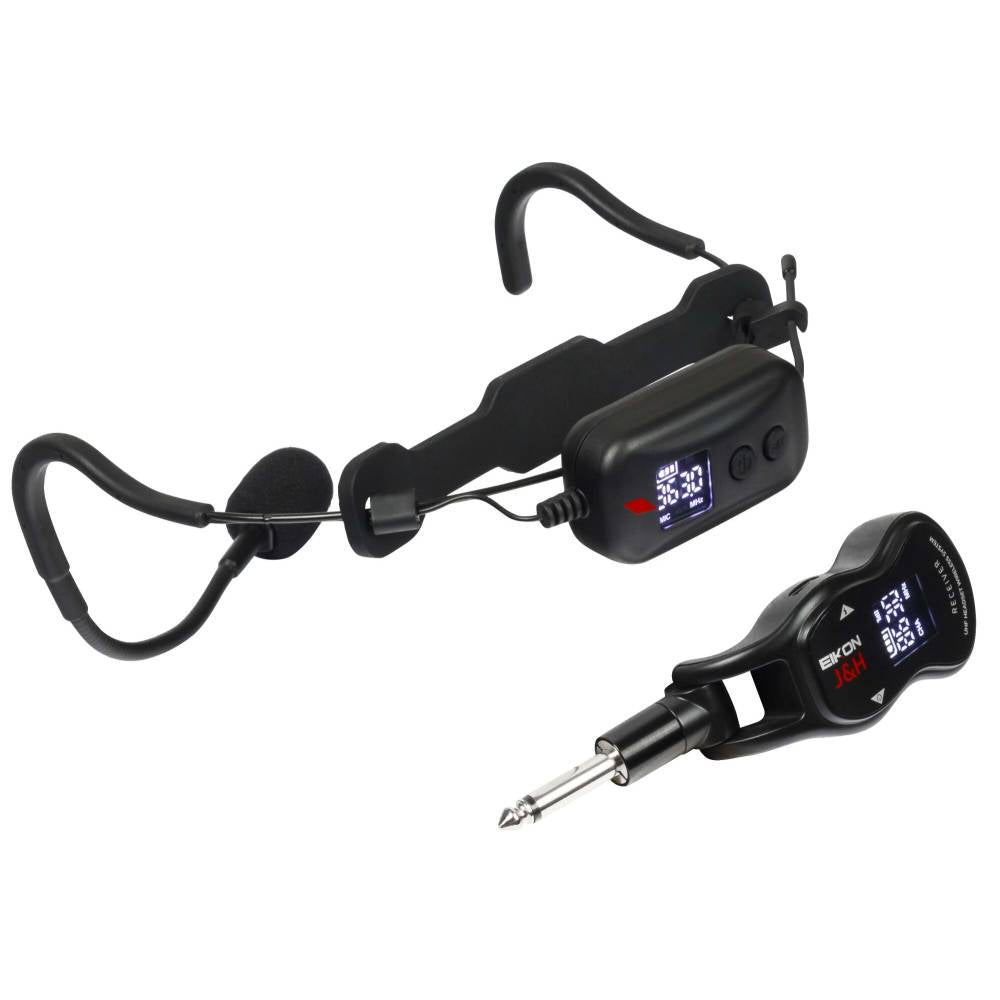

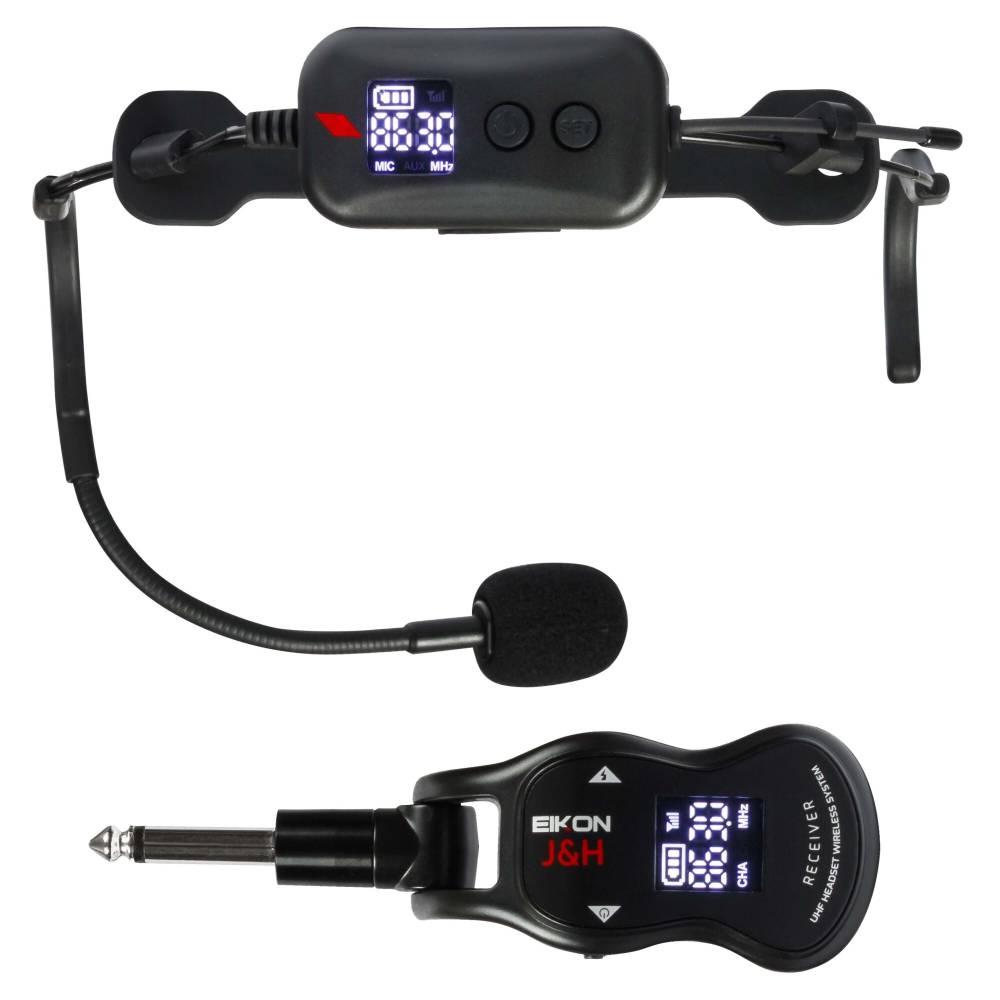

EKJ&H è dotato di 3 unità: trasmettitore headset EKJ&H, ricevitore compatto "formato connettore" EKJ&H e cavo di ricarica da USB a USB-C.

Sono disponibili 16 canali di frequenza (50 canali modello 512 - 541 MHz ), consentendo la possibilità di utilizzare l'apparato insieme ad altre apparecchiature wireless.

UHF 512 - 541 MHz or 863 – 865 MHz frequency band
Quartz locked modulation mode
Up to 20 meters range
Built in 3.7V/500mA lithium battery
5V USB-C charging cable included
Up to 4 hours autonomy
Multiple systems usable in the same location

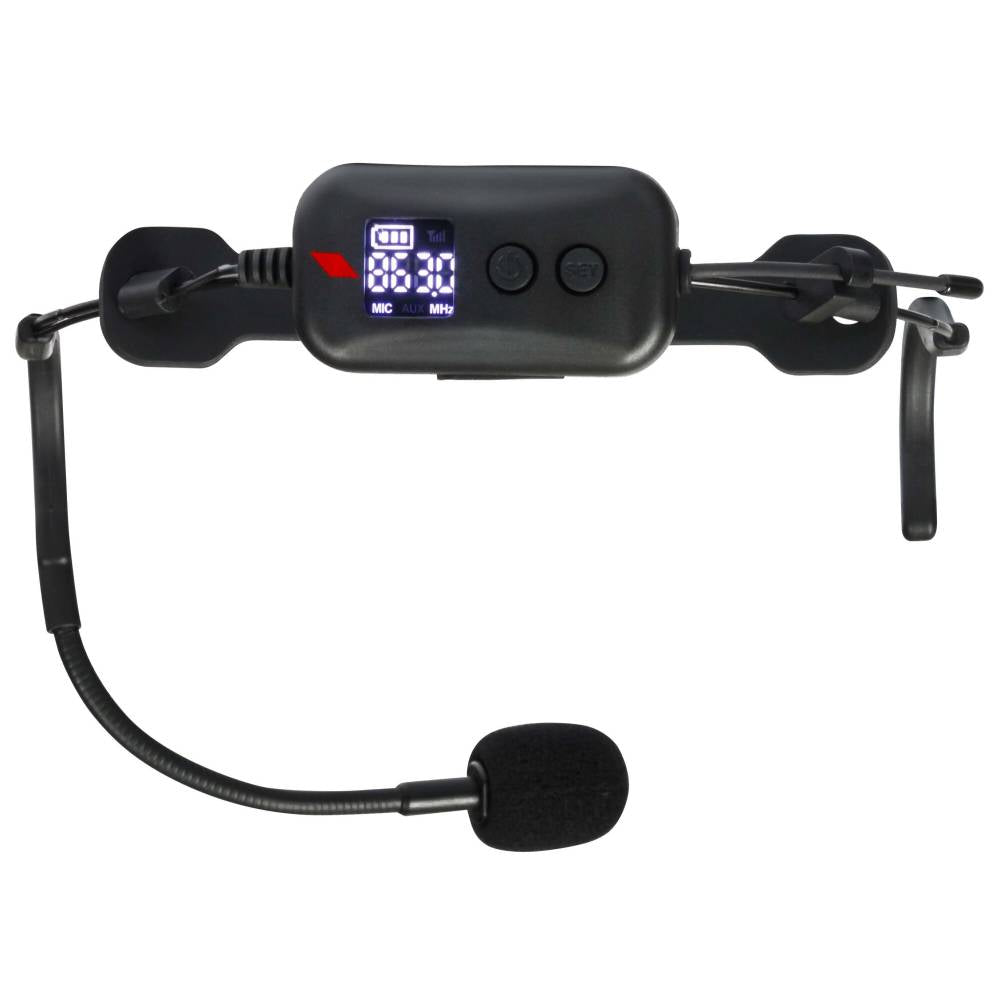

EKJ&H – UHF PLL Headset Transmitter

RF Channels: 16 frequency presets (50 for 512 - 541 MHz model)

RF Frequency Band: UHF: 512 - 541 MHz or 863 – 865 MHz

RF Frequency Stability: ±0,002%

RF Oscillation Mode: Quartz locked

RF Modulation Type: Wideband FM Stereo

RF Output Power: 10mW

Sub-harmonic: < 40 dB

Operating current: 130 mA

Operating Time: 3 to 5 hrs (depending on use conditions)

Operating Power Supply: 3.7 V / 500 mA - built-in Lithium battery

Charging mode: USB charging 5V – type USB-C connector

Charging time: 4 hours

Weight: 0.50 Kg

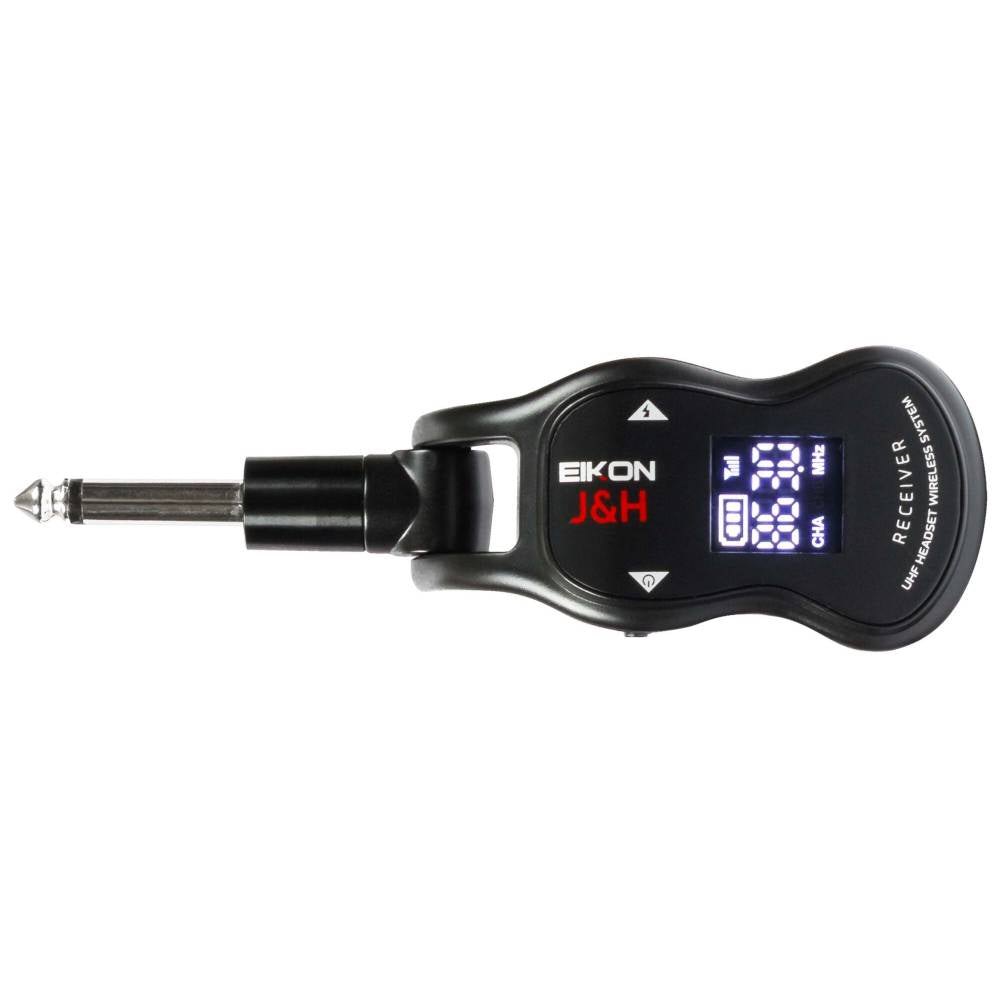

EKJ&H –UHF PLL Receiver

RF Channels: 16 frequency presets (50 for 512 - 541 MHz model)

RF Frequency Band: UHF: 512 - 541 MHz or 863 – 865 MHz

RF Frequency Stability: ±0,005%

RF Oscillation Mode: Quartz locked

RF Modulation Type: Wideband FM Stereo

RF Receiving Sensitivity: < -95 dBm

RF Receiving range: 20 meters depending on used band conditions

Audio dynamic range: 106 dBm

THD Distortion: < 0.5%

S/N Ratio: > 90 dBA

Audio output connector: 6.3 mm Mono Jack

Output Power Max (continuous): 400 mW

Operating current: 80 mA

Operating Time: 5 hours

Operating Power Supply: 3.7 V / 500 mA - built-in Lithium battery

Charging mode: USB charging 5V – type USB mini connector

Charging time: 3 hours

Weight: 0.05 Kg
