Sistema radiomicrofono Palmare EIKON J&M V2

EKJ&M è un sistema microfonico wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.

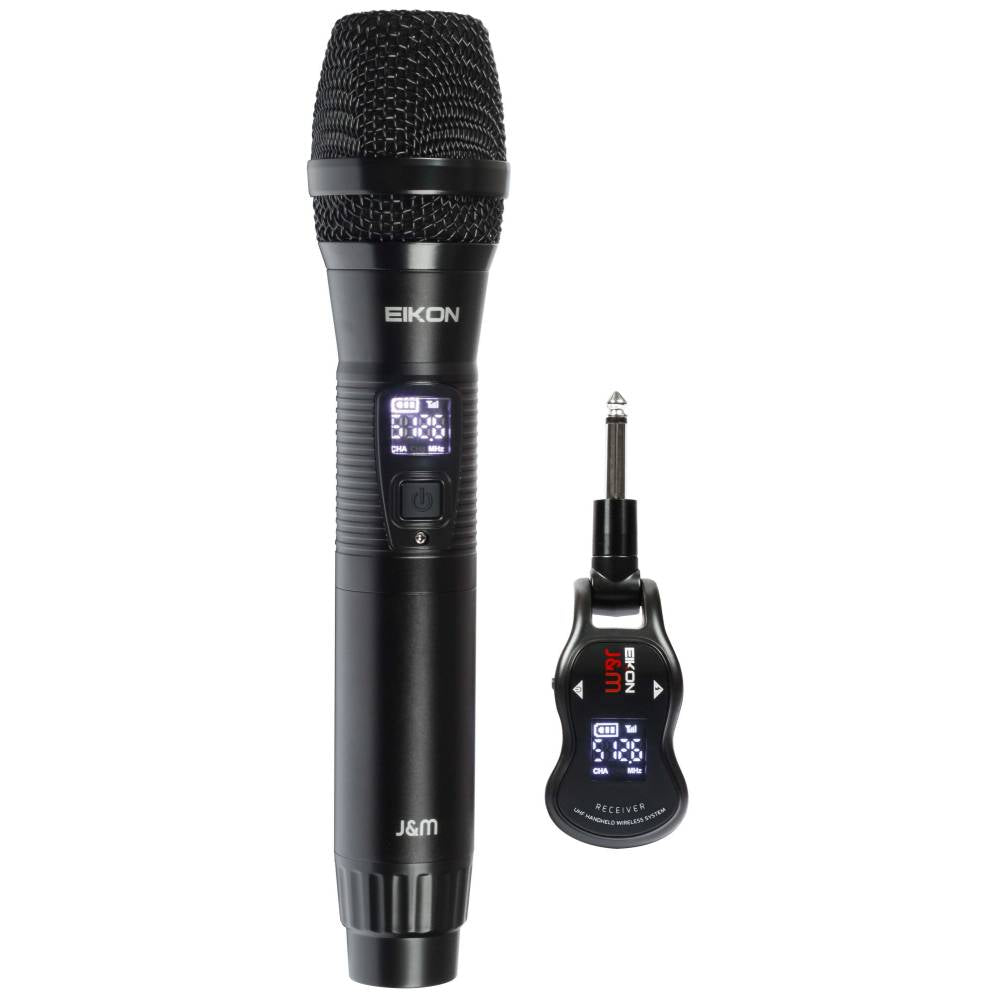

EKJ&M è dotato di 3 unità: trasmettitore portatile EKJ&M, ricevitore compatto "formato connettore" EKJ&M e cavo di ricarica da USB a USB-C.

Sono disponibili 16 canali di frequenza (50 canali modello 512 - 541 MHz ), consentendo la possibilità di utilizzare l'apparato insieme ad altre apparecchiature wireless.

UHF 512 - 541 MHz or 863 – 865 MHz frequency band
Quartz locked modulation mode
Up to 30 meters range
Built in 3.7V/500mA lithium battery
5V USB charging cable included
Up to 5 hours autonomy
Up to 6 systems usable in the same location

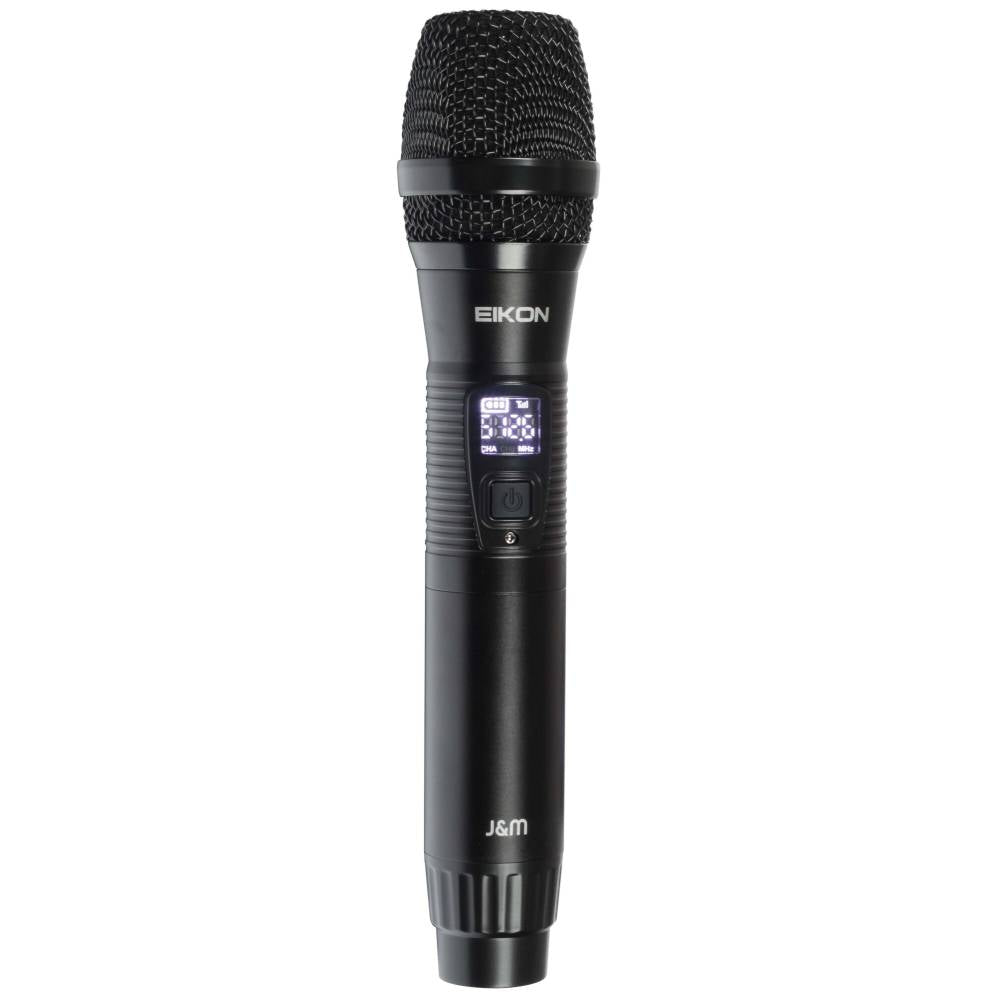

EKJ&M – UHF PLL Transmitter

RF Channels 16 frequency presets (50 for 512 - 541 MHz model)

RF Frequency Band UHF: 512 - 541 MHz or 863 – 865 MHz

RF Frequency Stability ±0,002%

RF Oscillation Mode Quartz locked

RF Modulation Type Wideband FM Stereo

RF Output Power 10mW

Sub-harmonic < 40 dB

Operating current 130 mA

Operating Time 5 to 8 hrs (depending on volume level)

Operating Power Supply 3.7 V / 500 mA - built-in Lithium battery

Charging mode USB charging 5V – type USB mini connector

Charging time 5 hours

Weight 0.30 Kg

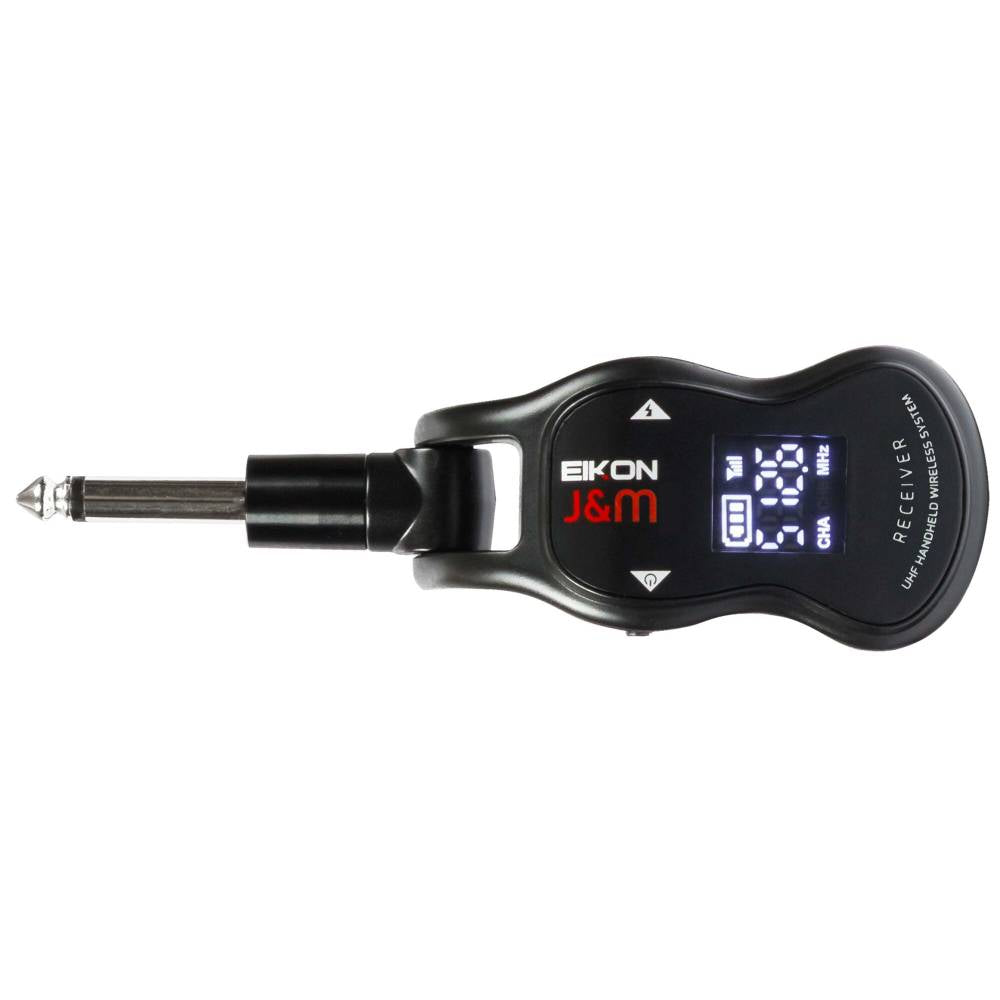

 EKJ&M –UHF PLL Receiver

RF Channels 16 frequency presets (50 for 512 - 541 MHz model)

RF Frequency Band UHF: 512 - 541 MHz or 863 – 865 MHz

RF Frequency Stability ±0,005%

RF Oscillation Mode Quartz locked

RF Modulation Type Wideband FM Stereo

RF Receiving Sensitivity < -98 dBm

RF Receiving range 15 to 30 meters depending on used band conditions

Audio dynamic range 106 dBm

THD Distortion < 0.5%

S/N Ratio > 102 dBA

Audio output connector 6.3 mm Mono Jack

Output Power Max (continuous) 400 mW

Operating current 80 mA

Operating Time 5 hours

Operating Power Supply 3.7 V / 500 mA - built-in Lithium battery

Charging mode USB charging 5V – type USB mini connector

Charging time 3 hours

Weight 0.05 Kg
